Product Introduction

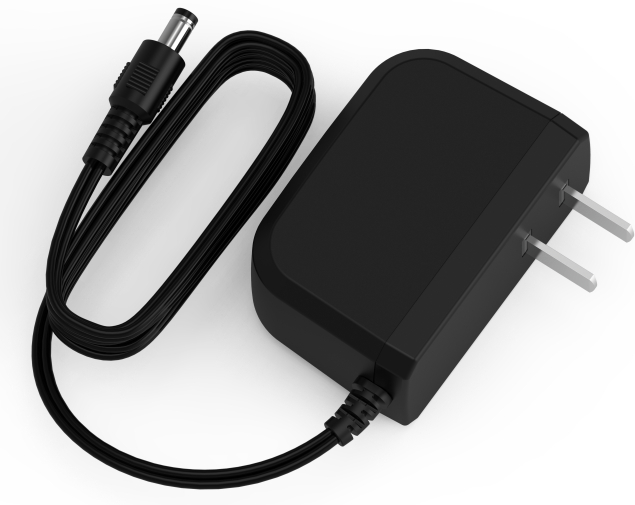

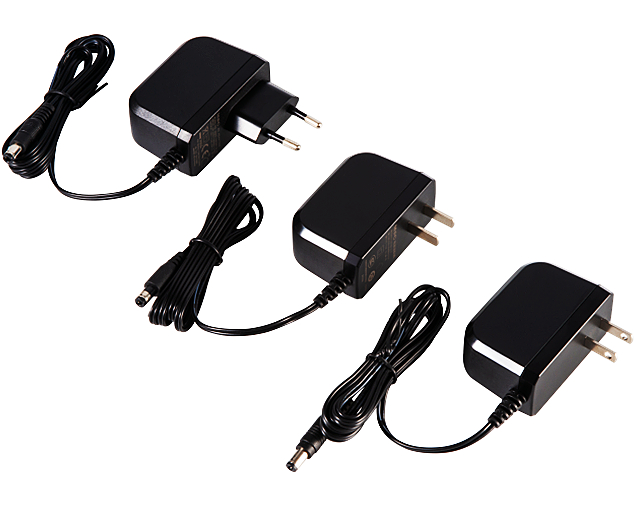

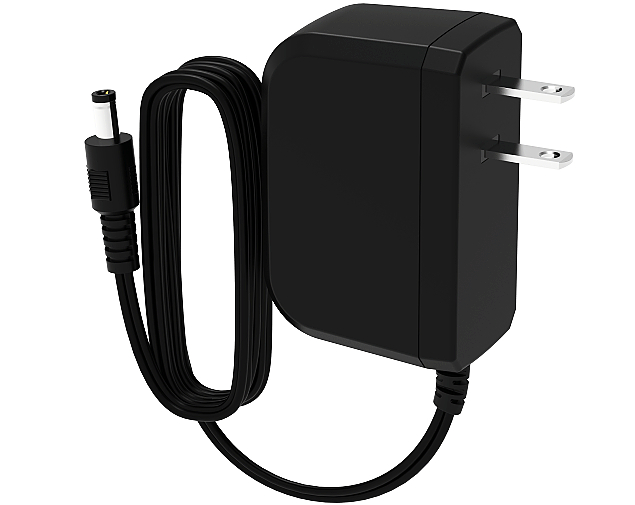

The 1808 series power adapter features an innovative dual-stage current protection technology, providing dual protection to ensure circuit safety during high surge tests. Integrated with a power management chip, it optimizes power conversion efficiency, reduces energy loss, and lowers production costs, offering customers a high cost-performance ratio. The 1808 series is suitable for applications requiring high safety and efficiency.

Specifications
Attribute Explain
Input Voltage 100-240Vac
Input Frequency 50/60Hz
Inrush Current <50A
Ripple & Noise <150mV
Surge Protection DM ± 6KV,CM ± 6KV(Optional)
Energy Efficiency Level VI (ErP、DoE)
Output Volteage 9-12VDC
Output Current 0.1-1.5A (18W Max.)
Plug Type CN/EU/US/UK/AR
Protection OVP/OCP/SCP
Dimensions 65.0*30.0*59.0mm
Certification Type UL/CUL/CE/CB/FCC/NOM
Safety Standards GB4943.1;AS/NZS 62368-1;J62368-1;K62368-1;IS 13252;CNS 15598-1;IEC/EN/UL 62368-1;NOM-001-SCFI
EMC Standards EN 55032(CISPR 32);EN 55035(CISPR 35);FCC Part15;EN 61000-3-2; EN61000-3-3;CNS15936;GB/T 9254.1;GB 17625.1;J55032
