0601 Series

Product Introduction

Specifications

Download

Product Introduction

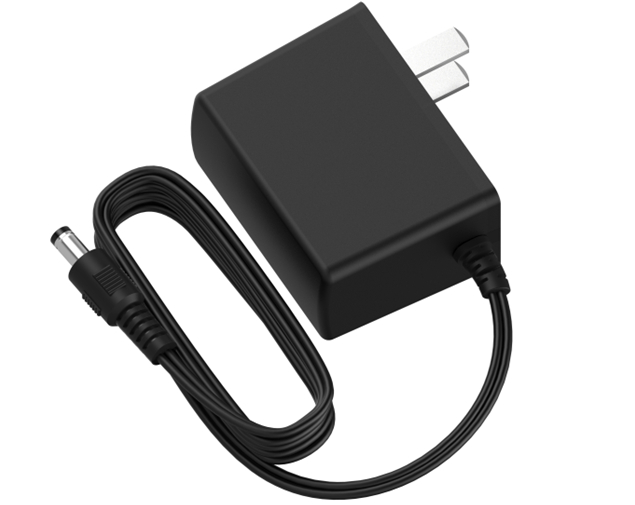

The 0601 series is a 6W lightweight plug-in adapter with a compact design, environmentally friendly features, and high reliability. This product is designed with reinforced insulation for Class II, suitable for universal voltage input from 90-264VAC, and offers output voltages ranging from 5V to 12VDC to meet the diverse needs of consumer electronics. The entire series complies with EU ErP and US DoE efficiency standards (Level VI), saving energy in both active and standby modes. The series has passed international safety regulations, meeting customer requirements across different regions.
Specifications

                                    Attribute
                                    Explain

                                        Input Voltage
                                        100-240Vac

                                        Input Frequency
                                        50/60Hz

                                        Inrush Current
                                        ≤30A

                                        Ripple & Noise
                                        ≤120mV

                                        Surge Protection
                                        DM ± 4KV,CM ± 4KV(Optional)

                                        Energy Efficiency
                                        Level VI (ErP、DoE)

                                        Output Volteage
                                        5/9/12VDC

                                        Output Current
                                        0-1.2A(6W Max.)

                                        Plug Type
                                        CN/US/EU/UK/BR/AR

                                        Protection
                                        OVP/OCP/SCP

                                        Dimensions
                                        56.7*28.7*42.0mm(CN/US Version)

                                        Certification Type
                                        CCC/UL/CUL/CE/CB/FCC/TUV/EAC

                                        Safety Standards
                                        GB4943.1;AS/NZS 62368-1;J62368-1;K62368-1;IS 13252;CNS 15598-1;IEC/EN/UL 62368-1

                                        EMC Standards
                                        EN 55032（CISPR 32);EN 55035(CISPR 35);FCC Part15;EN 61000-3-2; EN61000-3-3;CNS15936;GB/T 9254.1;GB 17625.1;J55032

Download

0601系列 5V1A 美规电源适配器承认书 .pdf

0601系列 5V1A 欧规电源适配器承认书 .pdf

0601系列 5V1A 英规电源适配器承认书 .pdf

0601系列 5V1A 中规电源适配器承认书 .pdf

0601系列 12V0.5A 美规电源适配器承认书 .pdf

0601系列 12V0.5A 欧规电源适配器承认书 .pdf

0601系列 12V0.5A 英规电源适配器承认书 .pdf

0601系列 12V0.5A 中规电源适配器承认书 .pdf
